With our combination storage Stove Toulouse WF, you can use the integrated warming compartment to heat and keep your food or cup of tea warm. Thanks to its solid natural stone cladding, the Stove provides soothing radiant heat for many hours. The Toulouse WF can be operated either with firewood or with our electricity-free Pellet System Inserts KO2 S and KO2 XL.

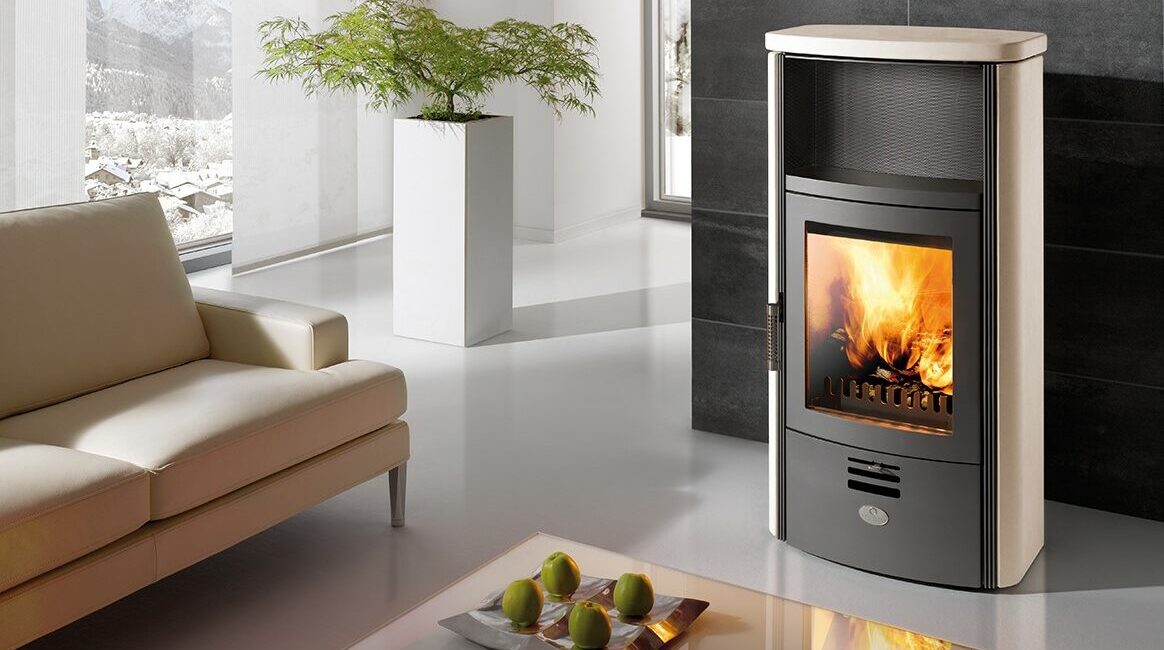

Toulouse WF, Stove with warming compartment
The electricity-free pellet system by Max Blank
One stove.
Two fuels.
Your Toulouse WF – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber. No electricity required.
- No power connection needed for pellet operation
- No electricity
- Pellets per filling (KO2 XL)
- 7.5 kg
- Heat release (KO2 XL)
- up to 13 h
- Nominal heat output with logs
- 7.9 kW
- Burning time with logs
- up to 5 h
- Heat release with logs
- up to 13 h
Values according to the technical data of the model.
Pellet firing made easy – without electricity
The video shows how a pellet system insert works in the combustion chamber.
Suitable for Toulouse WF:
Data and facts
Technical data
| measurements (cm) | H x W x D 116 x 61,5 x 48,5 cm |
| combustion chamber | H x W x D 30 x 37 x 29 cm |
| fire glass | H x W 42 x 34 cm |
| fire door | H x W 53 x 45 cm |
| total weight | 248 kg |
| chamotte bricks | 26 kg |
Data for firewood
| nominal heat output | 7,9 kW |
| efficiency | 81 % |
| heating capability | 70 - 250 m³ |
| amount of fuel | 2,48 kg / h |
| fire duration | up to 5 h |
| heat release | up to 13 h |
| flue gas flow volume | 8,45 g/s |
| exhaust °C (nozzle) | 265 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%O2) | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO2 S
| nominal heat output | 7,5 kW |
| output range | 7,5 - 5 kW |
| efficiency | 87% |
| heating capability | 50 - 150m³ |
| amount of fuel | 3,8 kg |
| fire duration | up to 2,5 h |
| heat release | up to 10 h |
| flue gas flow volume | 8,97 g/s |
| exhaust °C (nozzle) | 180 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 1166 mg/m³ |
| CO (13%O2) | 0,093 % |
| dust (13%/O2) [mg/m³] | 36 mg/m³ |
| NOx (13%O2) | 109 mg/m³ |
| OGC (CxHy) (13%O2) | 54 mg/m³ |
Data for Pellet System Insert KO2 XL
| nominal heat output | 11 kW |
| output range | 11 - 8,5 kW |
| efficiency | 85% |
| heating capability | 70 - 250 m³ |
| amount of fuel | 7,5 kg |
| fire duration | up to 5 h |
| heat release | up to 13 h |
| flue gas flow volume | 10,74 g/s |
| exhaust °C (nozzle) | 230 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 880 mg/m³ |
| CO (13%O2) | 0,070 % |
| dust (13%O2) | 30 mg/m³ |
| NOx (13%O2) | 110 mg/m³ |
| OGC (CxHy) (13%O2) | 41 mg/m³ |
Distances to combustible walls / components
| wall distance, rear | 30 cm |
| wall distance, side | 20 cm |
| distance to the front | 100 cm |
- Flue pipe connection Ø 15 upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
