The Odin Cook, equipped with a steel cooking plate, allows you to cook and fry without electricity and with exceptional efficiency. When not in use for cooking, you can enjoy the fire’s ambiance in the large firebox and the soothing radiant heat for many hours, thanks to its natural stone cladding. The Odin Cook can be operated with firewood or with our electricity-free KO1 Pellet System Insert.

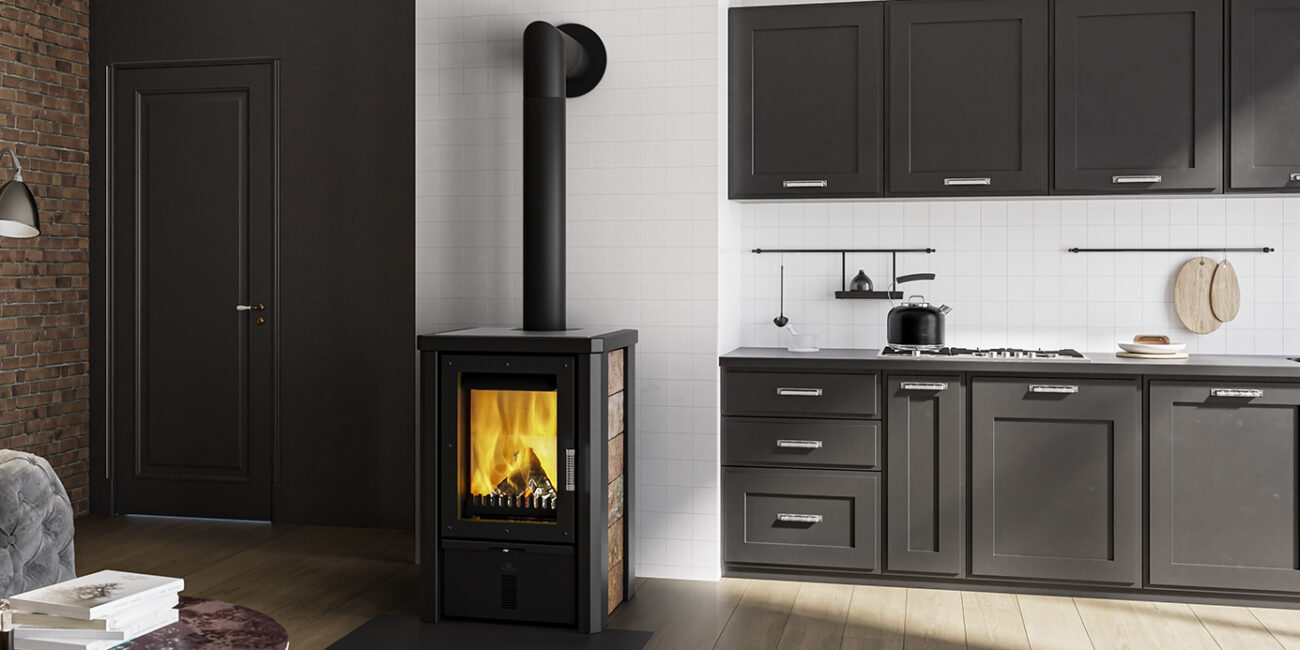

Odin Cook, Stove with cooking plate
The electricity-free pellet system by Max Blank
One stove.
Two fuels.
Your Odin Cook – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber. No electricity required.
- No power connection needed for pellet operation
- No electricity
- Pellets per filling (KO1)
- 7.5 kg
- Heat release (KO1)
- up to 12 h
- Nominal heat output with logs
- 8.2 kW
- Burning time with logs
- up to 4 h
- Heat release with logs
- up to 12 h
Values according to the technical data of the model.
Pellet firing made easy – without electricity
The video shows how a pellet system insert works in the combustion chamber.
Suitable for Odin Cook:
Data and facts
Technical data
| measurements (cm) | H x B x W 95,7 x 64 x 63 cm |
| combustion chamber | H x B x W 31 x 34 x 35 cm |
| fire glass | H x W 49 x 34 cm |
| fire door | H x W 60 x 45 cm |
| total weight | 260 kg |
| chamotte bricks | 60 kg |
Data for firewood
| nominal heat output | 8,2 kW |
| efficiency | 78% |
| heating capability | 70 - 350 m³ |
| amount of fuel | 2,59 kg / h |
| fire duration | up to 4 h |
| heat release | up to 12 h |
| flue gas flow volume | 10,6 g/s |
| exhaust °C (nozzle) | 271°C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%/O2) [mg/m³] | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO1
| nominal heat output | 12 kW |
| output range | 12 kW |
| efficiency | 82% |
| heating capability | 70 - 350 m³ |
| amount of fuel | 7,5 kg |
| fire duration | up to 4 h |
| heat release | up to 12 h |
| flue gas flow volume | 11,26 g/s |
| exhaust °C (nozzle) | 273°C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 1165 mg/m³ |
| CO (13%O2) | 0,093 % |
| dust (13%/O2) [mg/m³] | 26,5 mg/m³ |
| NOx (13%O2) | 51,1 mg/m³ |
| OGC (CxHy) (13%O2) |
Distances to combustible walls / components
| wall distance, rear | 28 cm |
| wall distance, side | 25 cm |
| distance to the front | 100 cm |
- Flue pipe connection Ø 15 upwards ↑
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
