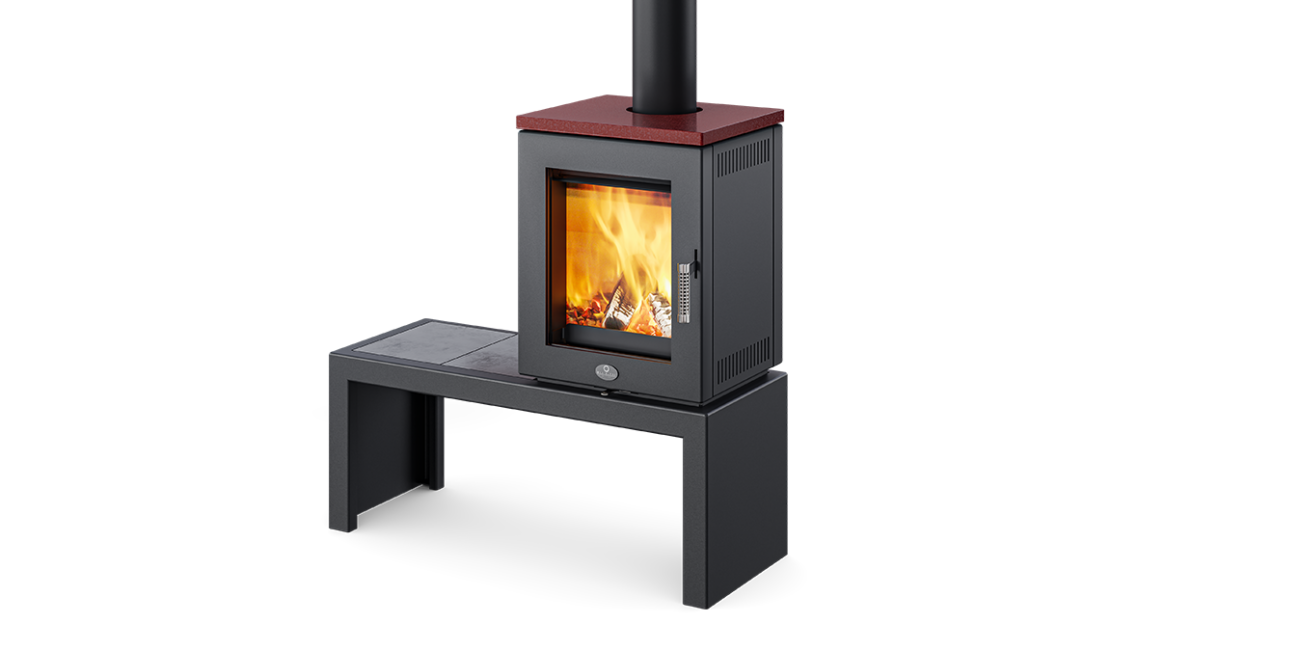

The Toulon II combination design Stove with a combination bench is a true eye-catcher and invites you to relax. The Stove can be placed on the bench to the left, center, or right. The Toulon II can be operated either with firewood or with our electricity-free Pellet System Inserts KO2 S and KO2 XL. The Toulon II is also available in Steel and Stone variants.
Toulon II Keramik, Stove with ceramic Lid
The electricity-free pellet system by Max Blank
One stove.
Two fuels.
Your Toulon II Keramik – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber. No electricity required.
- No power connection needed for pellet operation
- No electricity
- Pellets per filling (KO2 XL)
- 7.5 kg
- Heat release (KO2 XL)
- up to 9 h
- Nominal heat output with logs
- 7.9 kW
- Burning time with logs
- up to 5 h
- Heat release with logs
- up to 9 h
Values according to the technical data of the model.
Pellet firing made easy – without electricity
The video shows how a pellet system insert works in the combustion chamber.
Suitable for Toulon II Keramik:
Data and facts
Technical data
| measurements (cm) | H x W x D 105 x 108 x 41cm |
| combustion chamber | H x W x D 30 x 37 x 29 cm |
| fire glass | H x W 42 x 34 cm |
| fire door | H x W 58 x 50 cm |
| total weight | 179 kg |
| chamotte bricks | 26 kg |
| Data for firewood | |
| nominal heat output | 7,9 kW |
| efficiency | 81 % |
| heating capability | 70 - 250 m³ |
| amount of fuel | 2,48 kg / h |
| fire duration | up to 5 h |
| heat release | up to 9 h |
| flue gas flow volume | 8,45 g/s |
| exhaust °C (nozzle) | 265 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%/O2) [mg/m³] | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
| Data for Pellet System Insert KO2 S | |
| nominal heat output | 7,5 kW |
| output range | 7,5 - 5 kW |
| efficiency | 87% |
| heating capability | 50 - 150m³ |
| amount of fuel | 3,8 kg |
| fire duration | up to 2,5 h |
| heat release | up to 7 h |
| flue gas flow volume | 8,97 g/s |
| exhaust °C (nozzle) | 180 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 1166 mg/m³ |
| CO (13%O2) | 0,093 % |
| dust (13%/O2) [mg/m³] | 36 mg/m³ |
| NOx (13%O2) | 109 mg/m³ |
| OGC (CxHy) (13%O2) | 54 mg/m³ |
| Data for Pellet System Insert KO2 XL | |
| nominal heat output | 11 kW |
| output range | 11 - 8,5 kW |
| efficiency | 85% |
| heating capability | 70 - 250 m³ |
| amount of fuel | 7,5 kg |
| fire duration | up to 5 h |
| heat release | up to 9 h |
| flue gas flow volume | 10,74 g/s |
| exhaust °C (nozzle) | 230 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 880 mg/m³ |
| CO (13%O2) | 0,070 % |
| dust (13%/O2) [mg/m³] | 30 mg/m³ |
| NOx (13%O2) | 110 mg/m³ |
| OGC (CxHy) (13%O2) | 51 mg/m³ |
Distances to combustible walls / components
| wall distance, rear | 30 cm |
| wall distance, side | 20 cm |
| distance to the front | 100 cm |
- Flue pipe connection Ø 15 upwards ↑
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
