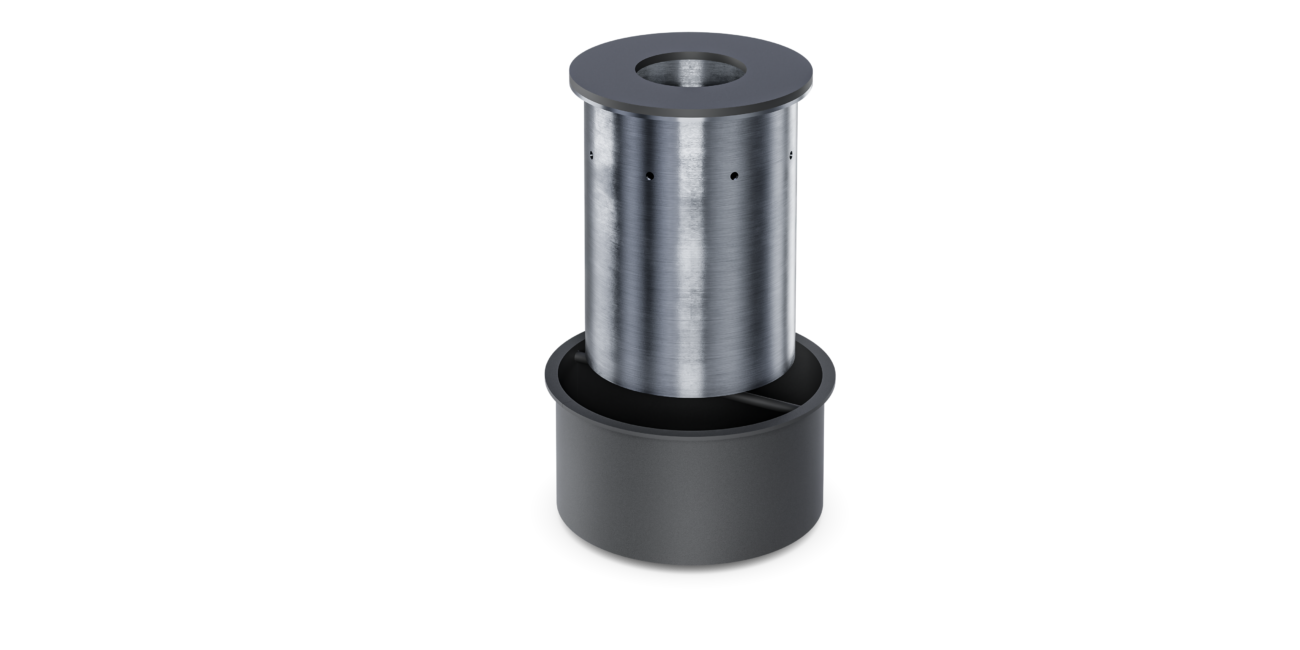

The Max Blank Pellet System Insert KO13 is an innovative solution for electricity-free heating. Integrated into the combustion chamber, this insert enables efficient pellet combustion without any power supply. This makes the Pellet System Insert ideal for those who want to combine the reliable warmth of a Stove with the benefits of pellet heating – completely independent of external energy sources.
Request productPellet-Systemeinsatz KO13
Data and facts
Technical data
| Height Pellet System Insert | 22 cm |
| Ø Pellet System Insert | 15 cm |
| Gewicht Pelletbox | 2,5 kg |
| Weight Including Attachments | 3,4 kg |
| Max. Pellet Filling Capacity Ø 6mm | 2,1 kg |
| Nominal Heat Output | 6,5 kW |
| Room Heat Output | 6,5 kW |
| Approved Fuels | Only wood pellets Ø 6 mm according to DIN EN 14961-2 (A1) are permitted. |
| Fuel Throughput | 1,54 kg/h |
| Burn Duration | 80 min |
| Efficiency | 87 % |
| CO (13%O2) | 144 mg/m³ |
| NOx (13%O2) | 140 mg/m³ |
| OGC-Emission (13%O2) | 5 mg/m³ |
| Staub (13%O2) | 11 mg/m³ |
| Data for Chimney Calculation | |
| Flue Gas Mass Flow | 8,7 g/s |
| Flue Gas Temperature at the Connection Point | 154 °C |
| Minimum Draft Pressure | 13 Pa |
All specifications are test bench values.
Only wood pellets according to DIN EN 14961-2 (A1) are approved.
Technical changes reserved.
Safety distances
Please refer to the Technical Manual of the respective stove model for information on safety distances.
Note on chimney dimensioning
Proof that the flue gases from the appliance are properly discharged to the outside under all intended operating conditions must be provided in accordance with DIN EN 13384-1 or DIN EN 13384-2.
Calculations must be carried out for the respective fuel, and the exhaust conditions must be checked.
For the thermal design of the flue system, the triple values from the type tests with the respective fuel apply.
For appliances that are operated with only one type of fuel (either firewood or pellets), the calculation must be performed using only that fuel.
