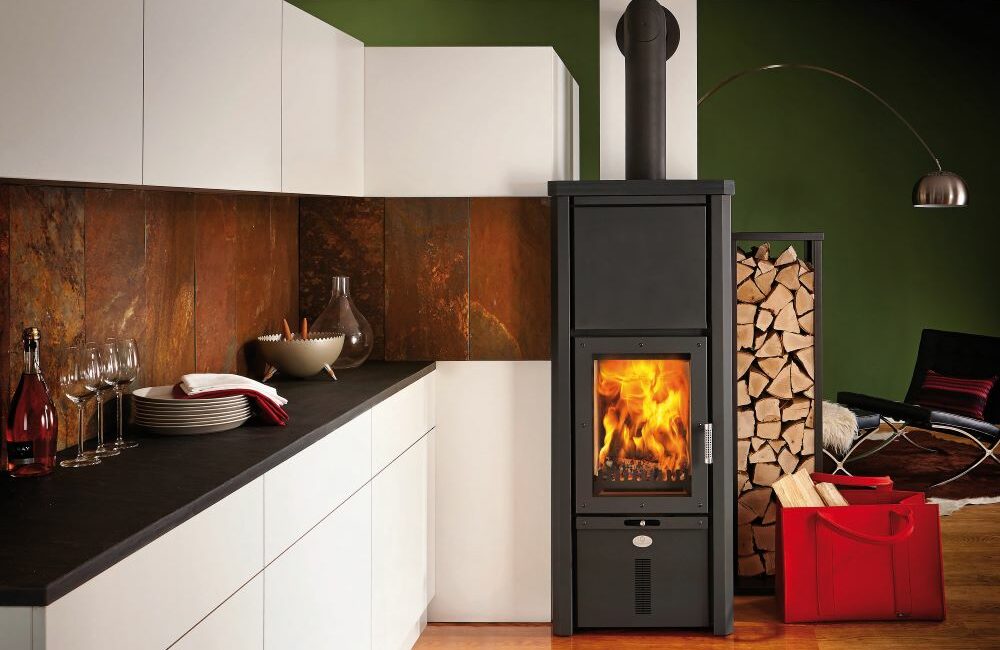

Stove with heat accumulation and natural stone
Odin SP
- Heat release
- up to 18 h
- Nominal heat output
- 7.7 kW
- Finishes
- 3
Odin SP, Stove with heat accumulation and natural stone
Why the Odin SP
The Odin SP in detail
Wood or pellets, no electricity
With KO1 you can also heat with pellets – no fan, no power connection.
KO1: 7.5 kg per filling
OptionalDetails on our pellet systemIntegrated heat storage
The storage block absorbs the heat and releases it for hours after the fire has burned down.
incl. 150 kg storage block
Warmth that lasts
Heat continues to be released for hours after the fire has burned down.
Burn time up to 5 h · heat release up to 18 h
3 finishes to choose from
Every natural stone panel is a natural product with its own grain.
Values from the technical data. Heat release depends on factors such as room, insulation, fuel and operation.
| Value | Firewoodstandard | Pellets KO1optional · 7.5 kg |
|---|---|---|
| Nominal heat output | 7.7 kW | 8.7 kW |
| Efficiency | 84 % | 83 % |
| Space heating capacity | 70–350 m³ | 70–350 m³ |
| Fuel | 2.21 kg/h | 7.5 kg |
| Burn time | up to 5 h | up to 5 h |
| Heat release | up to 18 h | up to 18 h |
| Flue gas temperature | 256 °C | 280 °C |
| CO (13 % O₂) | ≤ 1250 mg/m³ | 1073 mg/m³ |
| Dust (13 % O₂) | ≤ 40 mg/m³ | 22 mg/m³ |
Values from the technical data. Pellet system inserts are optional accessories. Heat release depends on factors such as room, insulation, fuel and operation.
- External dimensions
- H 155 × W 64 × D 63 cm
- Total weight
- 543 kg
- Firebox
- H 31 × W 34 × D 35 cm
- Viewing window
- H 49 × W 34 cm
- Fire door
- H 60 × W 45 cm
- Fireclay
- 60 kg
Installation and connection
- Distance to combustible materials
- rear 28 cm · side 25 cm · front 100 cm
- Flue pipe connection Ø 15 upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
The electricity-free pellet system by Max Blank
One stove.
Two fuels.
Your Odin SP – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber. No electricity required.
- No power connection needed for pellet operation
- No electricity
- Pellets per filling (KO1)
- 7.5 kg
- Heat release (KO1)
- up to 18 h
- Nominal heat output with logs
- 7.7 kW
- Burning time with logs
- up to 5 h
- Heat release with logs
- up to 18 h
Values according to the technical data of the model.
Pellet firing made easy – without electricity
The video shows how a pellet system insert works in the combustion chamber.
Suitable for Odin SP:
Data and facts
Technical data
| measurements (cm) | H x B x W 155 x 64 x 63 cm |
| combustion chamber | H x B x W 31 x 34 x 35 cm |
| fire glass | H x W 49 x 34 cm |
| fire door | H x W 60 x 45 cm |
| total weight | 543 kg |
| chamotte bricks | 60 kg |
Data for firewood
| nominal heat output | 7,7 kW |
| efficiency | 84 % |
| heating capability | 70 - 350 m³ |
| amount of fuel | 2,21 kg / h |
| fire duration | up to 5 h |
| heat release | up to18 h |
| flue gas flow volume | 6,8 g/s |
| exhaust °C (nozzle) | 256°C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%/O2) [mg/m³] | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO1
| nominal heat output | 8,7 kW |
| output range | 8,7 - 6,7 kW |
| efficiency | 83% |
| heating capability | 70 - 350 m³ |
| amount of fuel | 7,5 kg |
| fire duration | up to 5 h |
| heat release | up to 18 h |
| flue gas flow volume | 9,71 g/s |
| exhaust °C (nozzle) | 280°C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 1073 mg/m³ |
| CO (13%O2) | 0,086 % |
| dust (13%/O2) [mg/m³] | 22 mg/m³ |
| NOx (13%O2) | 73 mg/m³ |
| OGC (CxHy) (13%O2) | 64 mg/m³ |
Distances to combustible walls / components
| wall distance, rear | 28 cm |
| wall distance, side | 25 cm |
| distance to the front | 100 cm |
- Flue pipe connection Ø 15 upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
