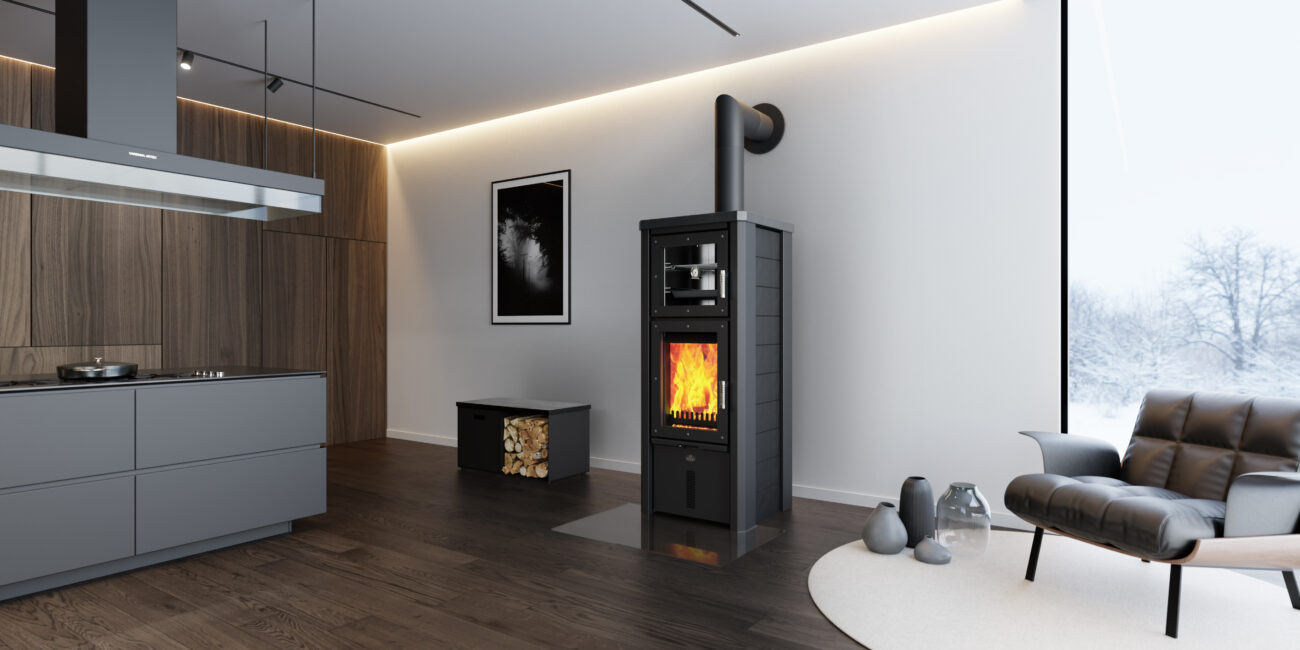

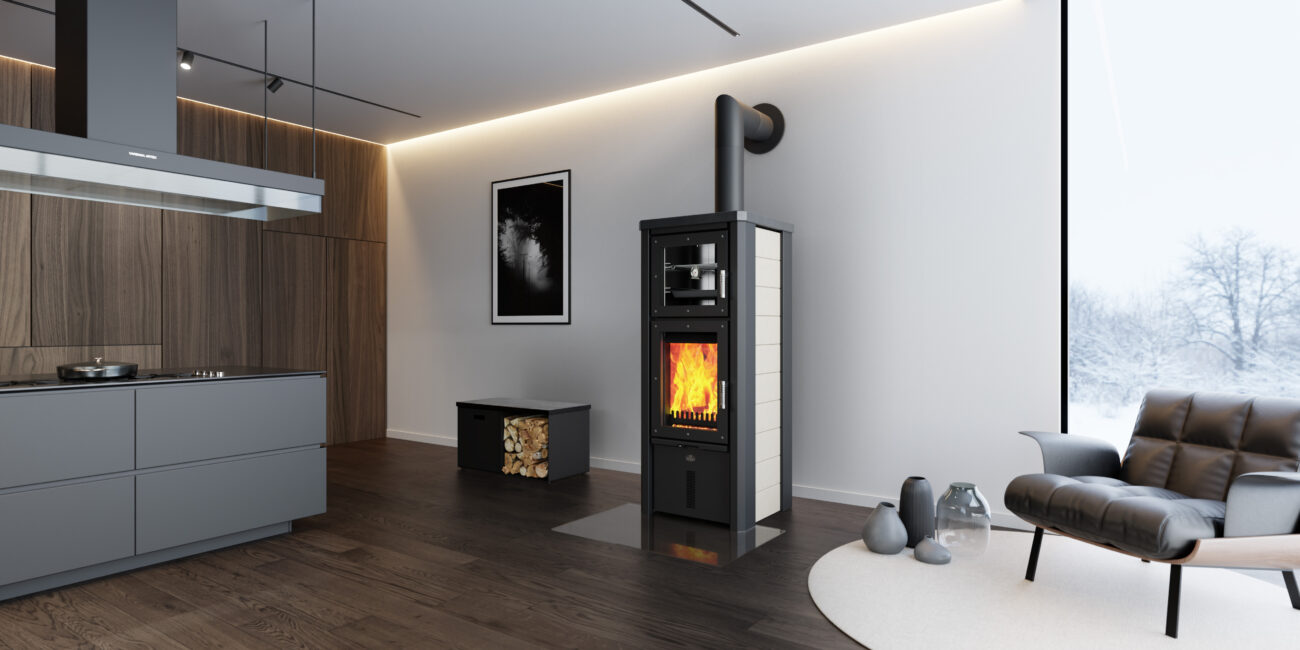

With our combination Stove Odin BF, featuring a roasting and baking compartment, you can roast and bake just like in grandma’s good old days. With its particularly large firebox and baking compartment, the Odin BF is the largest model in our roasting and baking line. Thanks to its solid natural stone cladding elements, it also serves as an excellent heat storage unit. The Stove can be operated with either firewood or pellets using our electricity-free KO1 Pellet System Insert.
Odin BF, Stove with baking compartment
The electricity-free pellet system by Max Blank
One stove.
Two fuels.

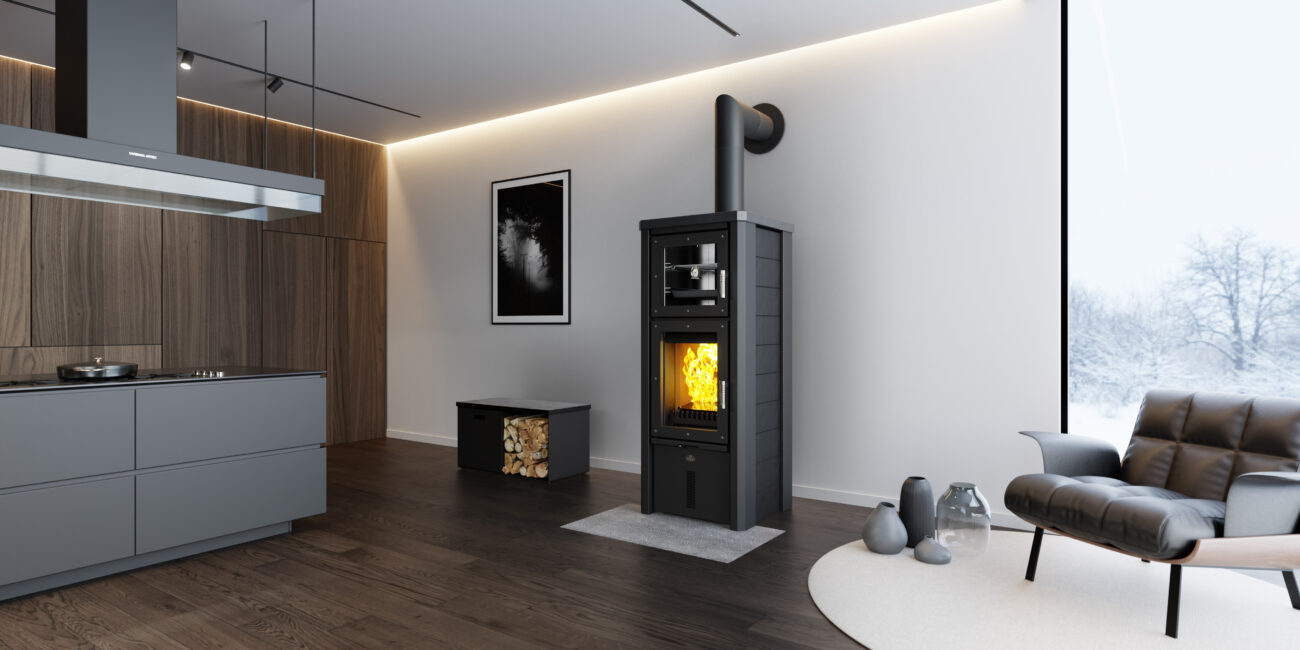

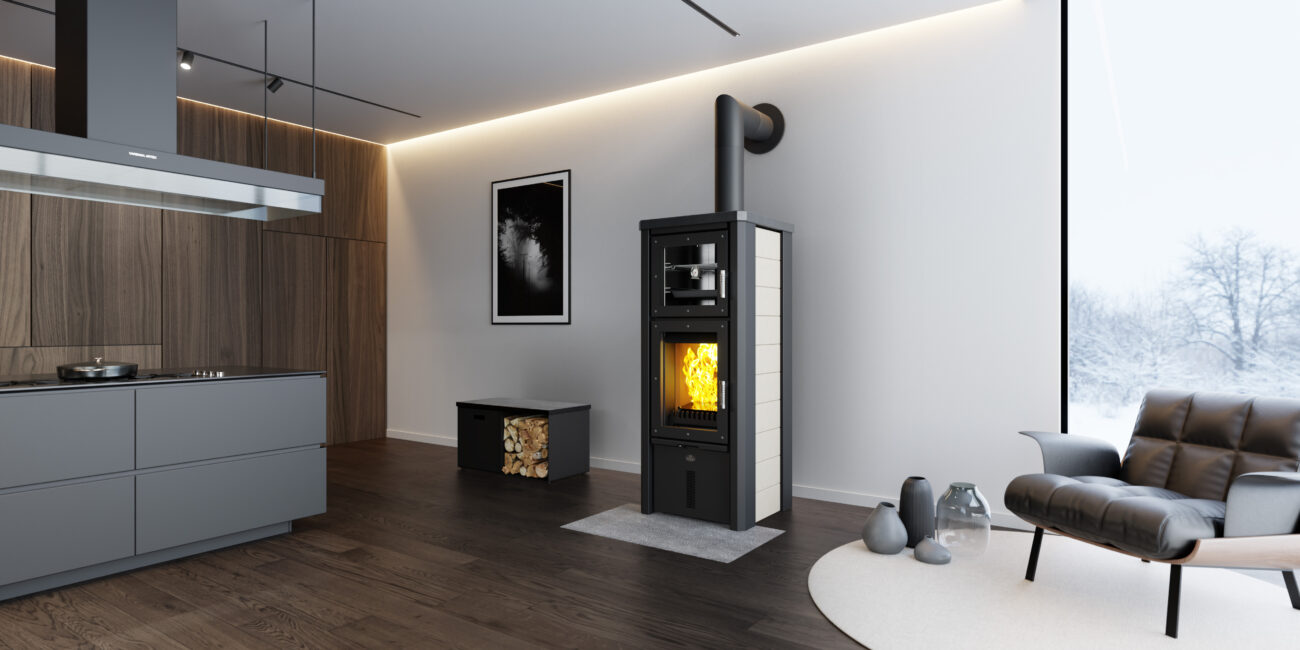

Your Odin BF – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber. No electricity required.
- No power connection needed for pellet operation
- No electricity
- Pellets per filling (KO1)
- 7.5 kg
- Heat release (KO1)
- up to 18 h
- Nominal heat output with logs
- 7.7 kW
- Burning time with logs
- up to 5 h
- Heat release with logs
- up to 18 h
Values according to the technical data of the model.
Pellet firing made easy – without electricity
The video shows how a pellet system insert works in the combustion chamber.
Suitable for Odin BF:
Data and facts
Technical data
| measurements (cm) | H x W x D 155 x 64 x 63 cm |
| combustion chamber | H x W x D 31 x 34 x 35 cm |
| fire glass | H x W 49 x 34 cm |
| fire door | H x W 60 x 45 cm |
| baking compartment | H x W x D 30 x 34 x 45 cm |
| total weight | 457 kg |
| chamotte bricks | 60 kg |
Data for firewood
| nominal heat output | 7,7 kW |
| efficiency | 87 % |
| heating capability | 70 - 350 m³ |
| amount of fuel | 2,21 kg / h |
| fire duration | up to 5 h |
| heat release | up to 18 h |
| flue gas flow volume | 6,8 g/s |
| exhaust °C (nozzle) | 204°C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%/O2) [mg/m³] | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO1
| nominal heat output | 8,7 kW |
| output range | 8,7 - 6,7 kW |
| efficiency | 83% |
| heating capability | 70 - 350 m³ |
| amount of fuel | 7,5 kg |
| fire duration | up to 5 h |
| heat release | up to 18 h |
| flue gas flow volume | 9,71 g/s |
| exhaust °C (nozzle) | 280°C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 1073 mg/m³ |
| CO (13%O2) | 0,086 % |
| dust (13%/O2) [mg/m³] | 22 mg/m³ |
| NOx (13%O2) | 73 mg/m³ |
| OGC (CxHy) (13%O2) | 64 mg/m³ |
Distances to combustible walls / components
| wall distance, rear | 28 cm |
| wall distance, side | 25 cm |
| distance to the front | 100 cm |
- Flue pipe connection Ø 15 upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
