The Max Blank Fireplace Insert KE 12 AM is ideal for replacing existing fireplace systems. With efficient heating technology and modern design, it provides cozy warmth and integrates seamlessly into various interior styles. Easy to install, it is the perfect solution for modern heating system optimization.
Request productKE 12 AM, Fireplace Insert for replacement
Data and facts
Technical data
| measurements | siehe Zeichnungen |
| installation dimensions | siehe Zeichnungen |
| combustion chamber | H x W x D 31 x 27 x 36 cm |
| fire glass | H x B 45 x 20 cm |
| fire door | H x B 60 x 35 cm |
| air inlet opening | Ø 1070 cm² |
| air outlet opening | Ø 1275 cm² |
| top flue connection | Ø 15 cm |
| air inlet connection | Ø 12,5 cm |
| height to flue connection | 77,5 cm |
| total weight | 166 - 174 kg |
| chamotte bricks | 53 kg |
Data for firewood
| nominal heat output | 7,5 kW |
| room heat output | 7,5 kW |
| max. fuel | 2,24 kg/h |
| efficiency | 83% |
| flue gas flow volume | 6,83 g/s |
| exhaust °C (nozzle) | 266° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,042 % |
| CO (13%O2) | 520 mg/m³ |
| dust (13%/O2) [mg/m³] | 32 mg/m³ |
| NOx (13%O2) | 121 mg/m³ |
| OGC (CxHy) (13%O2 | 22 mg/m³ |
Data for Firewood with Heat Recovery Box
| nominal heat output | 8,0 kW |
| room heat output | 8,0 kW |
| max. fuel | 2,2 kg/h |
| efficiency | 91% |
| flue gas flow volume | 6,83 g/s |
| exhaust °C (nozzle) | 266° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,045 % |
| CO (13%O2) | 562 mg/m³ |
| dust (13%/O2) [mg/m³] | 29 mg/m³ |
| NOx (13%O2) | 116 mg/m³ |
| OGC (CxHy) (13%O2 | 24 mg/m³ |
Data for chimney calculation
| flue gas flow volume | 10,75 g/s |
| exhaust °C (nozzle) | 477° C |
| min. feed press. | 17 Pa |
| firing performance | 18 kW |
- External Air Connection Ø 100 mm possible and pre-configured
- Door hinge can be changed on-site (requires an alternative door handle)
- Sliding rollers for easier installation
- Door Front Anthracite
- Top Flue Outlet 150 mm, with optional choices: Ø 145 mm, Ø 160 mm, Ø 180 m

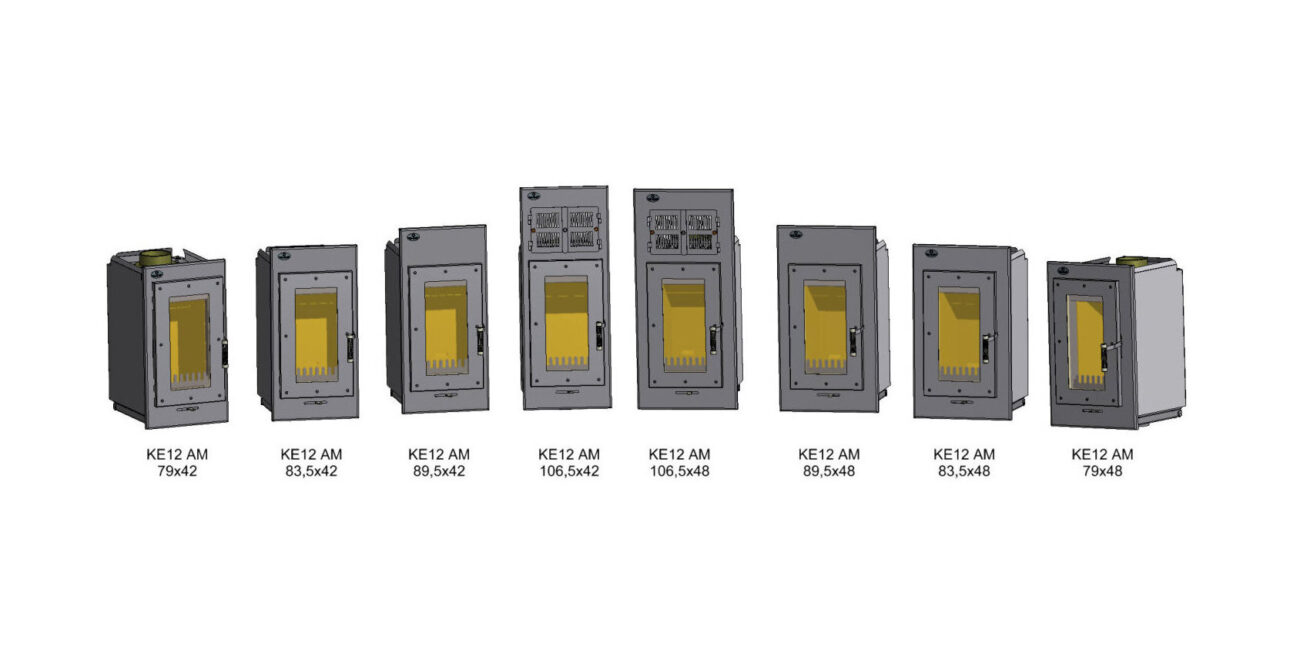

Anbaurahmen
| Mounting Frame H 79 x W 42 cm | Single and Double Glazing Available |
| Mounting Frame H 83,5 x W 42 cm | Single and Double Glazing Available |
| Mounting Frame H 89,5 x W 42 cm | Single and Double Glazing Available |
| Mounting Frame H 106,5 x W 42 cm | Single and Double Glazing Available |
| Mounting Frame H 79 x W 48 cm | Single and Double Glazing Available |
| Mounting Frame H 83,5 x W 48cm | Single and Double Glazing Available |
| Mounting Frame H 89,5 x W 48 cm | Single and Double Glazing Available |
| Mounting Frame H 106,5 x W 48 cm | Single and Double Glazing Available |
Mounting Frames are available in custom colors and sizes upon request!
