Stove with heat accumulation

Frankfurt

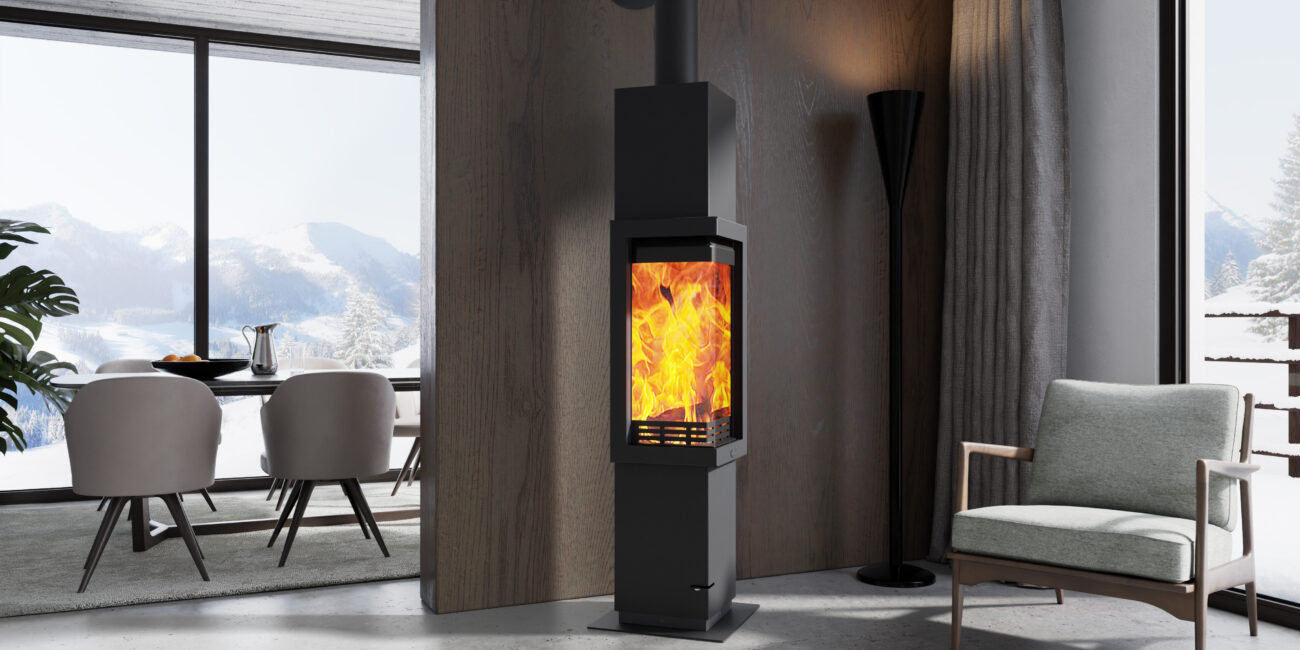

Our two-sided steel combination Stove Frankfurt is a true eye-catcher with its large angled fire glass and modern design, offering a spectacular view of the fire. The Stove is equipped with an integrated 49 kg storage block, and with the option to use either firewood or our electricity-free Pellet System Insert KO6, you remain flexible in your choice of fuel.

Heat release: up to 7 h
Nominal heat output: 10.1 kW
Efficiency: 78 %

Individuelle Befeuerung

Pelletbefeuerung

Scheitholzbefeuerung

Efficiency class

Frankfurt, Stove with heat accumulation

steel anthracite

Why the Frankfurt

The Frankfurt in detail

Wood or pellets, no electricity
With KO6 you can also heat with pellets – no fan, no power connection.
KO6: 2.2 kg per filling
Optional
Integrated heat storage
The storage block absorbs the heat and releases it for hours after the fire has burned down.
incl. 49 kg storage block
Warmth that lasts
Heat continues to be released for hours after the fire has burned down.
Burn time up to 0.8–1.6 h · heat release up to 7 h
Rotatable
With the swivel base you can turn the stove so you can see the fire from your favourite spot.
Optional

Values from the technical data. Heat release depends on factors such as room, insulation, fuel and operation.

Value	Firewoodstandard	Pellets KO6optional · 2.2 kg
Nominal heat output	10.1 kW	6.4 kW
Efficiency	78 %	84 %
Space heating capacity	70–210 m³	35–100 m³
Fuel	3.41 kg/h	2.2 kg
Burn time	up to 0.8–1.6 h	up to 1.2–2 h
Heat release	up to 7 h	up to 6 h
Flue gas temperature	246 °C	195 °C
CO (13 % O₂)	≤ 1250 mg/m³	312 mg/m³
Dust (13 % O₂)	≤ 40 mg/m³	17 mg/m³

Values from the technical data. Pellet system inserts are optional accessories. Heat release depends on factors such as room, insulation, fuel and operation.

Emissions, downloads and accessories

The pellet system by Max Blank

One stove.
Two fuels.

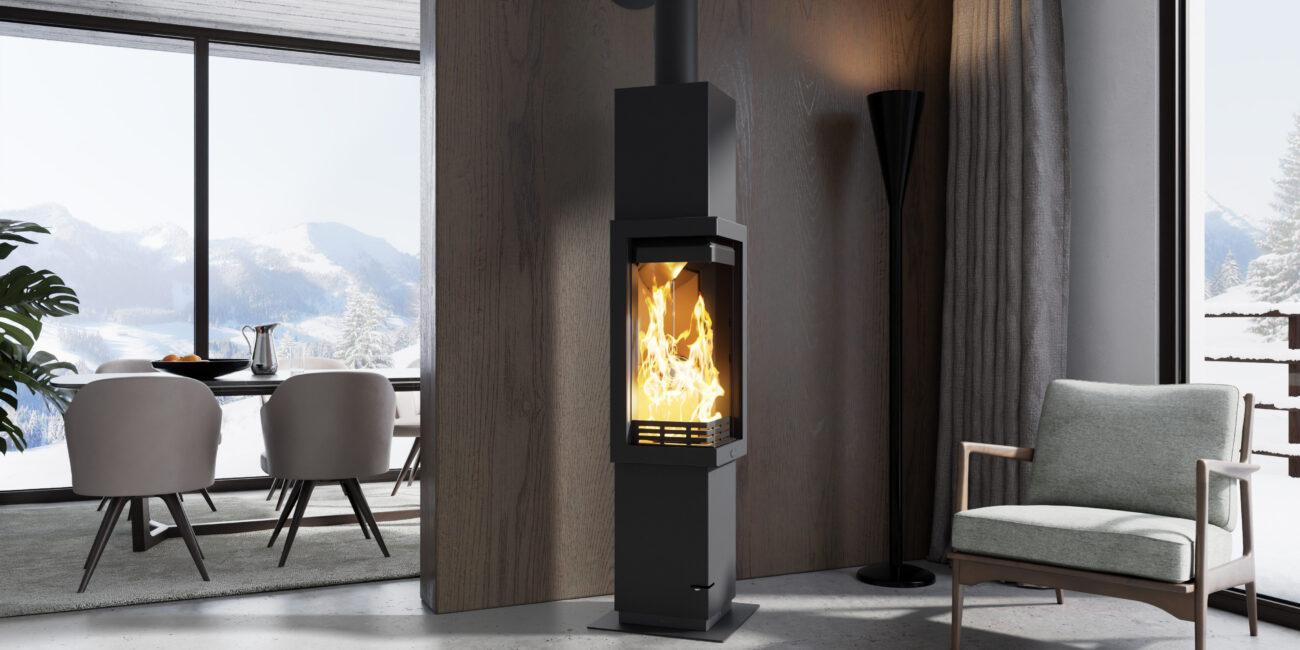

Your Frankfurt – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber.

Nominal heat output (KO6): 6.4 kW
Pellets per filling (KO6): 2.2 kg
Heat release (KO6): up to 6 h

Values according to the technical data of the model.

In the video: Dijon L · 1:09

Pellet firing made easy

The video shows how a pellet system insert works in the combustion chamber.

Suitable for Frankfurt:

Pellet System Insert KO6 Enquire with pellet system

Data and facts

Technical data

measurements (cm)	H x W x D 178,5 x 33 x 33 cm
combustion chamber	H x W x D 68 x 27 x 27 cm
fire glass	H x W 68 x 44 cm
fire door	H x W 80 x 52 cm
total weight	217 kg
chamotte bricks	25,5 kg

Data for firewood

nominal heat output	10,1 kW
efficiency	78%
heating capability	70 - 210 m³

amount of fuel	3,41 kg / h
fire duration	up to 0,8 - 1,6 h
heat release	up to 7 h

flue gas flow volume	14,6 g/s
exhaust °C (nozzle)	246 °C
min/max feed press.	12 / 15 Pa

CO (13%O2)	≤ 1250 mg/m³
dust (13%O2)	≤ 40 mg/m³
NOx (13%O2)	≤ 200 mg/m³
OGC (CxHy) (13%O2)	≤ 120 mg/m³

Data for Pellet System Insert KO6

nominal heat output	6,4 kW
output range	6,4 - 5 kW
efficiency	84%
heating capability	35 - 100 m³

amount of fuel	2,2 kg
fire duration	up to 1,2 - 2 h
heat release	up to 6 h

flue gas flow volume	11,89 g/s
exhaust °C (nozzle)	195 °C
min/max feed press.	12 / 15 Pa

CO (13%O2)	312 mg/m³
CO (13%O2)	0,025 %
dust (13%O2)	17 mg/m³
NOx (13%O2)	101 mg/m³
OGC (CxHy) (13%O2)	21 mg/m³
