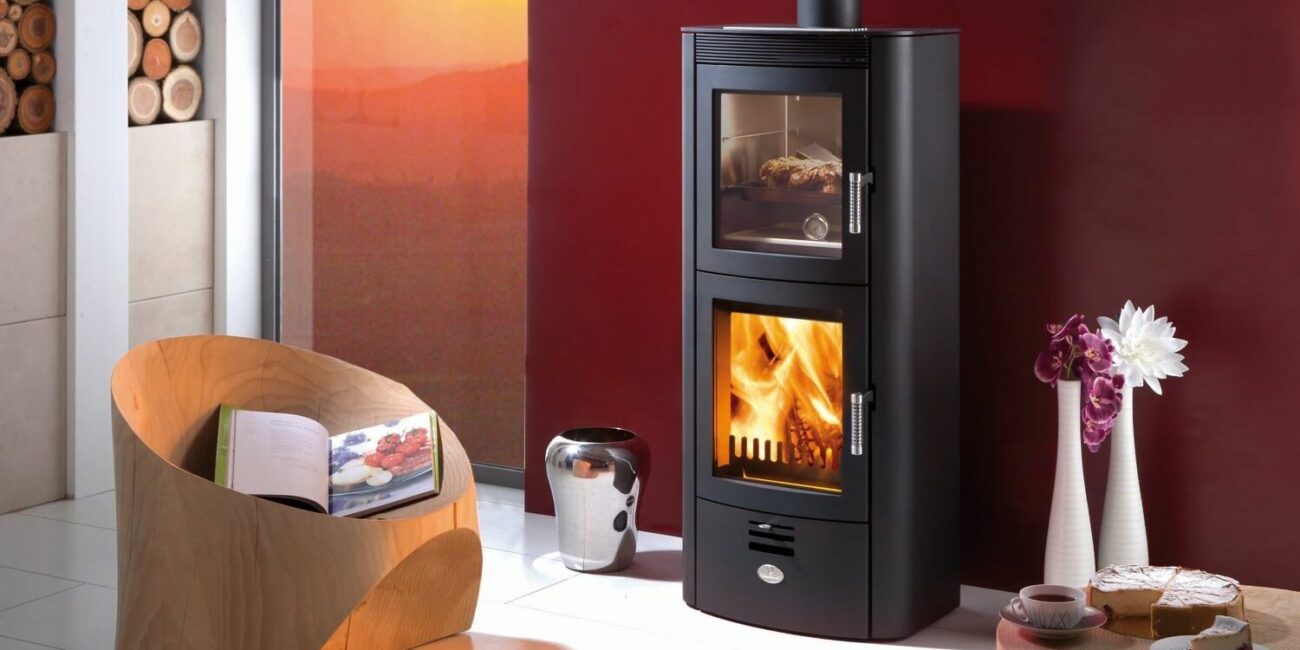

With the Atlanta BF combination stove featuring an integrated roasting and baking compartment, you can enjoy roasting and baking in an ecological, power-free way – just like in grandma’s days, yet combined with state-of-the-art technology.
In terms of timeless design, you can choose between a lid made of fine natural stone (cream polished or black polished) or elegant steel. For maximum flexibility, the Atlanta BF can be operated either with firewood or with the power-free pellet system inserts KO2 S and KO2 XL.
Request productAtlanta BF, Stove with baking compartment
Data and facts
Technical data
measurements (cm) | H x W x D 137 x 61 x 45 cm |
combustion chamber | H x W x D 30 x 37 x 29 cm |
baking compartement | H x W x D 30 x 34 x 30 cm |
fire glass | H x W 42 x 34 cm |
fire door | H x W 53 x 45 cm |
total weight | 218 kg |
chamotte bricks | 26 kg |
Data for firewood
nominal heat output | 8,0 kW |
efficiency | 83% |
heating capability | 70 - 250 m³ |
amount of fuel | 2,9 kg / h |
fire duration | up to 5 h |
heat release | up to 8 h |
flue gas flow volume | 6,97 g/s |
exhaust °C (nozzle) | 268 °C |
min/max feed press. | 12 / 15 Pa |
CO (13%O2) | ≤ 1250 mg/m³ |
dust (13%/O2) [mg/m³] | ≤ 40 mg/m³ |
NOx (13%O2) | ≤ 200 mg/m³ |
OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO2 S
nominal heat output | 7,5 kW |
output range | 7,5 - 5 kW |
efficiency | 87% |
heating capability | 50 - 150m³ |
Brennstoffdurchsatz | 2,44 kg/h |
amount of fuel | 3,8 kg |
fire duration | up to 2,5 h |
heat release | up to 10 h |
Abgasmassestrom bei Nennwärmeleistung | 6,97 g/s |
flue gas flow volume | 8,97 g/s |
exhaust °C (nozzle) | 180 °C |
min/max feed press. | 12 / 15 Pa |
CO (13%O2) | ≤ 1250 mg/m³ |
CO (13%O2) | 1166 mg/m³ |
CO (13%O2) | 0,093 % |
dust (13%/O2) [mg/m³] | 36 mg/m³ |
NOx (13%O2) | 109 mg/m³ |
OGC (CxHy) (13%O2) | 54 mg/m³ |
Data for Pellet System Insert KO2 XL
nominal heat output | 11 kW |
output range | 11 - 8,5 kW |
efficiency | 85% |
heating capability | 70 - 250 m³ |
amount of fuel | 7,5 kg |
fire duration | up to 5 h |
heat release | up to 16 h |
flue gas flow volume | 10,74 g/s |
exhaust °C (nozzle) | 230 °C |
min/max feed press. | 12 / 15 Pa |
CO (13%O2) | 880 mg/m³ |
CO (13%O2) | 0,070 % |
dust (13%/O2) [mg/m³] | 30 mg/m³ |
NOx (13%O2) | 110 mg/m³ |
OGC (CxHy) (13%O2) | 41 mg/m³ |
Distances to combustible walls / components
wall distance, rear | 28 cm |
wall distance, side | 20 cm |
distance to the front | 100 cm |
- Flue pipe connection Ø 15 upwards ↑
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
