The Turin SP adds extra mass to the mix: with its integrated 50 kg heat accumulation block, it retains warmth long after the fire has gone out – for efficient and sustainable heating. The black stove body pairs perfectly with your choice of Steel or Stone finishes. The flue outlet can be configured at the top or rear. The electricity free pellet system insert is also available for the Turin SP – for maximum heating flexibility. Max Blank quality at an attractive price – with smart heat storage included.

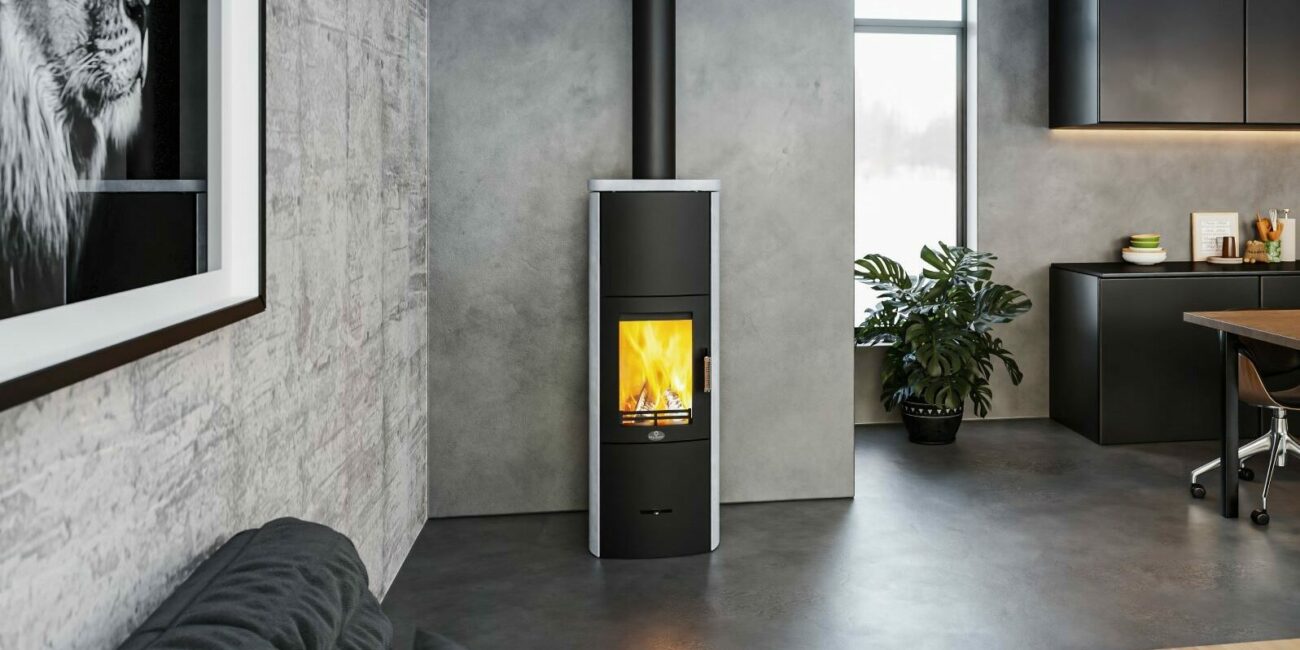

Request productTurin SP Stone - Store heat effectively
Data and facts
Technical data
| measurements (cm) | H x W x D 136 x 49 x 42 cm |
| Filling space width | 28 cm |
| Filling space depth | 27 cm |
| Filling chamber height | 38 cm |
| total weight | 232 kg |
| chamotte bricks | 18 kg |
| Data for firewood | |
| size of wood | 25 cm |
| nominal heat output | 5,0 kW |
| efficiency | 86 % |
| heating capability | 70 - 210 m³ |
| amount of fuel | 1,47 kg/h |
| fire duration | up to 2,5 h |
| heat release | up to 9 h |
| flue gas flow volume | 9,2 g/s |
| exhaust °C (nozzle) | 340 °C |
| min/max feed press. | 12 / 15 Pa |
| CO-Emission (13%O2) | ≤ 1250 mg/m³ |
| NOx-Emission (13%O2) | ≤ 200 mg/m |
| OGC-Emission (13%O2) | ≤ 120 mg/m |
| Dust-Emission (13%O2) | ≤ 40 mg/m³ |
| Partial load | |
| Heat output at partial load | 3,9 kW |
| Efficiency at partial load | 77 % |
| CO-Emission (13%O2) | ≤ 1500 mg/m³ |
| NOx-Emission (13%O2) | ≤ 200 mg/m³ |
| OGC-Emission (13%O2) | ≤ 120 mg/m³ |
| Dust-Emission (13%O2) | ≤ 40 mg/m³ |
| Minimum delivery pressure at partial load | 8 Pa |
| Temperature at the exhaust manifold under partial load | 248 °C |
| flue gas flow volume under partial load | 6,0 g/s |
| Distances to combustible walls / components | |
| wall distance, rear | 20 cm |
| wall distance, side | 20 cm |
| distance to the front | 80 cm |
| distance at the top | 75 cm |
| Please refer to the technical manual! |
- Flue pipe connection upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
Compatible pellet system inserts
- Pellet System Insert KO13
