Our round Stove Nimes impresses with its elegant design and variety of cladding options. The Nimes is available in Steel, Crystal, and Stone variants. For operation, you can choose between firewood or our electricity-free Pellet System Insert KO4, offering you exceptional independence. The Stove can also be optionally equipped with a 28 kg storage block, a swivel base, or DIBt certification.

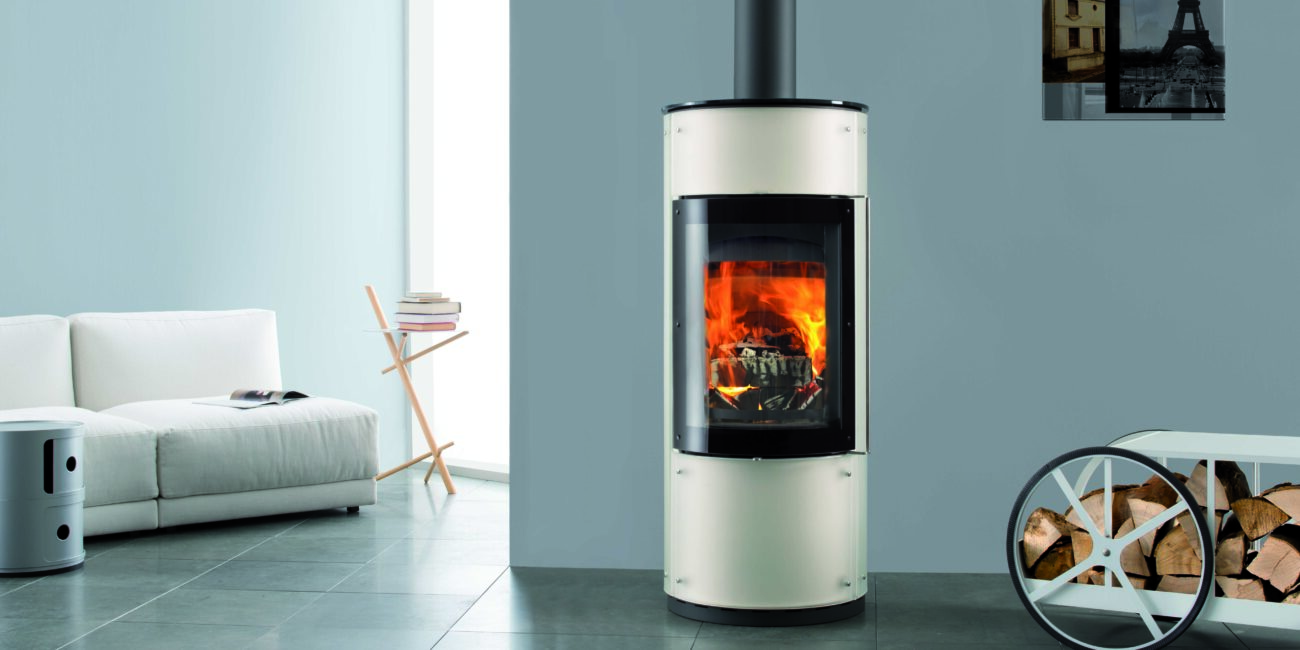

Nimes Crystal, design Stove
Data and facts
Technical data
| measurements (cm) | H x W x D 123 x 51,5 x 51,5 cm |
| combustion chamber | H x W x D 60 x 34 x 30 cm |
| fire glass | H x W 48 x 36 cm |
| fire door | H x W 60 x 44 cm |
| total weight | 167 kg |
| chamotte bricks | 22 kg |
Data for firewood
| nominal heat output | 5,1 kW |
| efficiency | 81 % |
| heating capability | 70 - 210 m³ |
| amount of fuel | 1,67 kg/h |
| fire duration | up to 4 h |
| heat release | up to 8 h |
| flue gas flow volume | 6,0 g/s |
| exhaust °C (nozzle) | 249° C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%O2) | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO4
| nominal heat output | 5,0 kW |
| output range | 5 - 3 kW |
| efficiency | 76% |
| heating capability | 50-150 m³ |
| amount of fuel | 2,7 kg |
| fire duration | up to 2 h |
| heat release | up to 6 h |
| flue gas flow volume | 8,28 g/s |
| exhaust °C (nozzle) | 270° C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 227 mg/m³ |
| CO (13%O2) | 0,018 % |
| dust (13%O2) | 12 mg/m³ |
| NOx (13%O2) | 125 mg/m³ |
| OGC (CxHy) (13%O2) | 17 mg/m³ |
Distances to combustible walls / components
| wall distance, rear | 12 cm |
| wall distance, side | 12 cm |
| distance to the front | 90 cm |
- Flue pipe connection Ø 15 upwards ↑
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
Compatible pellet system inserts
Accessories
- Stainless Steel Floor Protection
- Glas Floor Protection
- heat accumulation block (4 Stones with 28 kg)
- Swivel Base for Rotatable Version
- DIBt Testing for Room-Sealed Version
