The Lille Basic combination Stove – simple and timeless design in a variety of options. The Lille Basic is available in Steel, Stone, and Ceramic variants. The Stove can be operated either with firewood or with our electricity-free Pellet System Inserts KO2 S and KO2 XL.

Request product

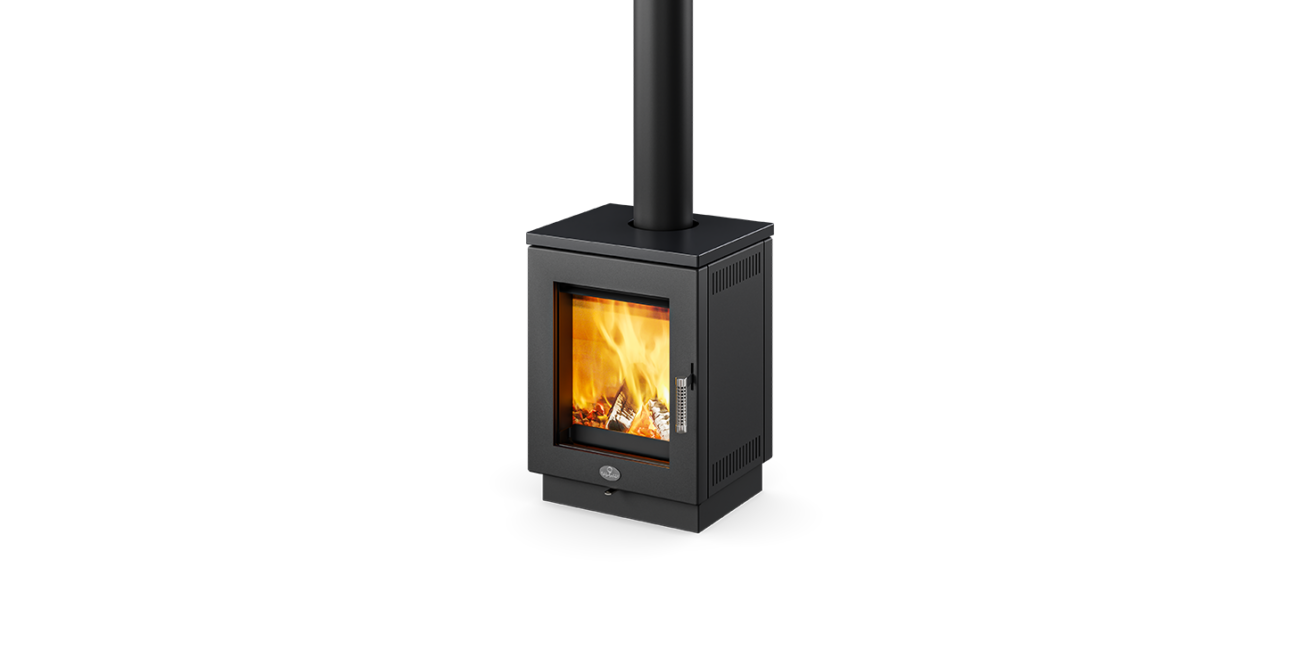

Lille Basic Keramik, small Stove

Max Blank Lille Basic Keramik

Data and facts

Technical data

measurements (cm) H x W x D 69,5 x 53,5 x 41 cm
combustion chamber H x W x D 30 x 37 x 29 cm
fire glass H x W 42 x 34 cm
fire door H x W 58 x 50 cm
total weight 156 kg
chamotte bricks 26 kg

Data for firewood

nominal heat output 7,9 kW
efficiency 81 %
heating capability 70 - 250 m³

amount of fuel 2,48 kg / h
fire duration up to 5 h
heat release up to 9 h

flue gas flow volume 8,45 g/s
exhaust °C (nozzle) 265 °C
min/max feed press. 12 / 15 Pa

CO (13%O2) ≤ 1250 mg/m³
dust (13%O2) ≤ 40 mg/m³
NOx (13%O2) ≤ 200 mg/m³
OGC (CxHy) (13%O2) ≤ 120 mg/m³

Data for Pellet System Insert KO2 S

nominal heat output 7,5 kW
output range 7,5 - 5 kW
efficiency 87%
heating capability 50 - 150m³

amount of fuel 3,8 kg
fire duration up to 2,5 h
heat release up to 7 h

flue gas flow volume 8,97 g/s
exhaust °C (nozzle) 180 °C
min/max feed press. 12 / 15 Pa

CO (13%O2) 1166 mg/m³
CO (13%O2) 0,093 %
dust (13%O2) 36 mg/m³
NOx (13%O2) 109 mg/m³
OGC (CxHy) (13%O2) 54 mg/m³

Data for Pellet System Insert KO2 XL

nominal heat output 11 kW
output range 11 - 8,5 kW
efficiency 85%
heating capability 70 - 250 m³

amount of fuel 7,5 kg
fire duration up to 5 h
heat release up to 9 h

flue gas flow volume 10,74 g/s
exhaust °C (nozzle) 230 °C
min/max feed press. 12 / 15 Pa

CO (13%O2) 880 mg/m³
CO (13%O2) 0,070 %
dust (13%O2) 30 mg/m³
NOx (13%O2) 110 mg/m³
OGC (CxHy) (13%O2) 41 mg/m³

Distances to combustible walls / components

wall distance, rear 30 cm
wall distance, side 20 cm
distance to the front 100 cm
  • Flue pipe connection Ø 15 upwards ↑
  • Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)

Compatible pellet system inserts
