The Max Blank KE1 Fireplace Insert combines modern technology with an appealing design to deliver an exceptional fireplace experience. With a robust construction made of high-quality steel and an elegant glass front, the KE1 serves not only as an efficient heat source but also as a stylish highlight for any living space.

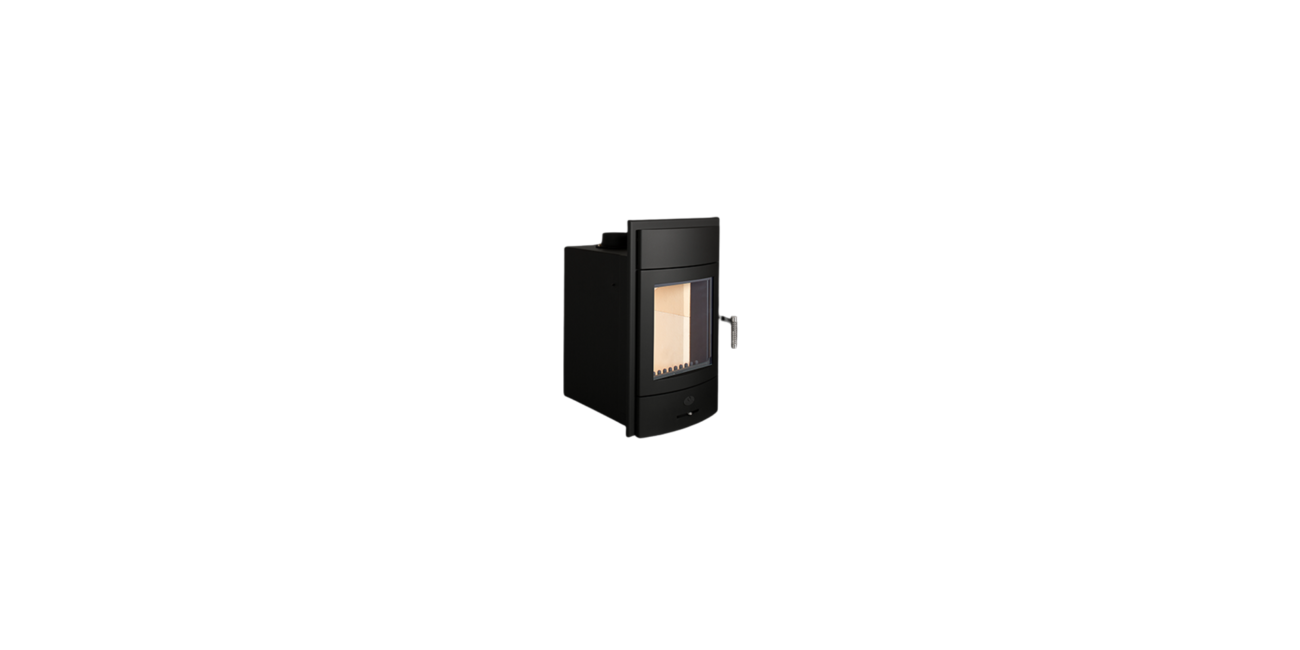

KE 1 Sinnergie curved door, Fireplace Insert
Data and facts
Technical data
| measurements (cm) | H x W x D 90 x 51 x 65 cm |
| installation dimensions | H x W x D 74 x 45 x 50 cm |
| combustion chamber | H x W x D 31 x 34 x 35 cm |
| fire glass | H x W 38 x 34 cm |
| fire glass radius | 61 cm |
| fire door | H x W 49 x 45 cm |
| air inlet and outlet opening | Ø 800 cm² |
| top flue connection | Ø 15 cm |
| air inlet connection | Ø 10 cm |
| height to flue connection | 74,5 cm |
| total weight | 159 kg |
| chamotte bricks | 60 kg |
Data for firewood
| nominal heat output | 7,5 kW |
| room heat output | 7,5 kW |
| output range | 7,8 - 4,3 kW |
| max. fuel | 2,2 kg/h |
| efficiency | 83% |
| flue gas flow volume | 6,8 g/s |
| exhaust °C (nozzle) | 280° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,065 % |
| CO (13%O2) | 806 mg/m³ |
| dust (13%/O2) [mg/m³] | 32 mg/m³ |
| NOx (13%O2) | 116 mg/m³ |
| OGC (CxHy) (13%O2 | 27 mg/m³ |
Data for Pellet System Insert KO1
| nominal heat output | 8,7 kW |
| room heat output | 8,7 kW |
| output range | 8,7 - 6,7 kW |
| max. fuel | 7,5 kg |
| efficiency | 83% |
| flue gas flow volume | 9,71 g/s |
| exhaust °C (nozzle) | 280° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,09 % |
| CO (13%O2) | 1073 mg/m³ |
| dust (13%/O2) [mg/m³] | 22 mg/m³ |
| NOx (13%O2) | 73 mg/m³ |
| OGC (CxHy) (13%O2 | 64 mg/m³ |
Data for chimney calculation
| flue gas flow volume | 16,1 g/s |
| exhaust °C (nozzle) | 559° C |
| min. feed press. | 15 Pa |
| firing performance | 25,5 kW |
- Door Front Anthracite
- Top Flue Outlet Ø 15 cm
- External Air Connection Possible and Prepared (Must Be Specified When Ordering)
- With Front Plate Anthracite
- Door Hinge on the Left (Right Hinge Available Upon Request)
Compatible pellet system inserts
Accessories
- Convection jacket
- Support Bearings and Additional Accessories Available Upon Request
