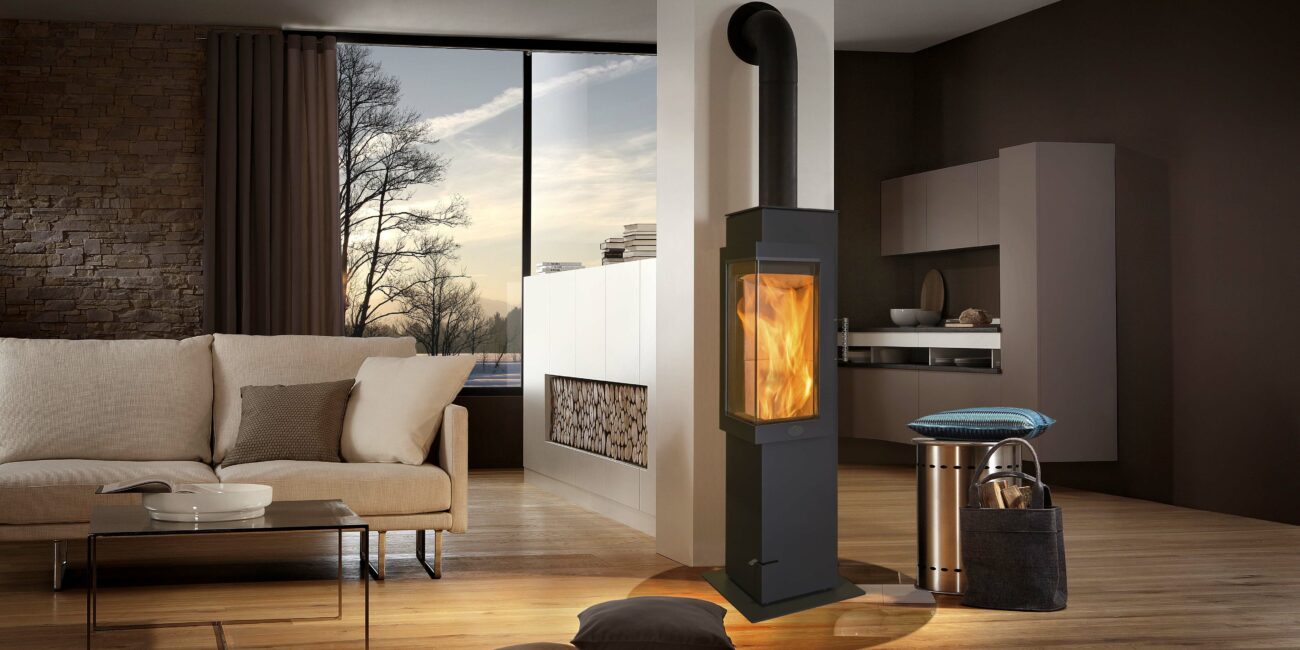

small two-sided Stove made of steel
Erfurt
Our compact, two-sided steel combination Stove Erfurt is a true eye-catcher with its large angled fire glass and modern design, offering a spectacular view of the fire. With the option to use either firewood or our electricity-free Pellet System Insert KO9, you have flexibility in your choice of fuel. Upon request, the Stove is also available with a swivel base or DIBt certification.
- Heat release
- up to 2 h
- Nominal heat output
- 5.9 kW
- Efficiency
- 78 %
Erfurt, small two-sided Stove made of steel
Why the Erfurt
The Erfurt in detail
Wood or pellets, no electricity
With KO9 you can also heat with pellets – no fan, no power connection.
KO9: 2.1 kg per filling
OptionalDetails on our pellet systemWarmth that lasts
Heat continues to be released for hours after the fire has burned down.
Burn time up to 1.5 h · heat release up to 2 h
Rotatable
With the swivel base you can turn the stove so you can see the fire from your favourite spot.
OptionalRoom-air-independent option
For homes with a ventilation system, a tested room-air-independent version is available.
DIBt tested
Optional
Values from the technical data. Heat release depends on factors such as room, insulation, fuel and operation.
| Value | Firewoodstandard | Pellets KO9optional · 2.1 kg |
|---|---|---|
| Nominal heat output | 5.9 kW | 7.2 kW |
| Efficiency | 78 % | 91 % |
| Space heating capacity | 70–210 m³ | 70–210 m³ |
| Fuel | 1.91 kg/h | 2.1 kg |
| Burn time | up to 1.5 h | up to 1.5 h |
| Heat release | up to 2 h | up to 2 h |
| Flue gas temperature | 235 °C | 218 °C |
| CO (13 % O₂) | ≤ 1250 mg/m³ | 540 mg/m³ |
| Dust (13 % O₂) | ≤ 40 mg/m³ | 22 mg/m³ |
Values from the technical data. Pellet system inserts are optional accessories. Heat release depends on factors such as room, insulation, fuel and operation.
- External dimensions
- H 135 × W 30 × D 30 cm
- Total weight
- 120 kg
- Firebox
- H 52 × W 25.5 × D 25.5 cm
- Viewing window
- H 54 × W 34 cm
- Fire door
- H 66 × W 42 cm
- Fireclay
- 14 kg
Installation and connection
- Distance to combustible materials
- rear 50 cm · side 50 cm · front 80 cm
- Flue pipe connection Ø 15 upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
One stove.
Two fuels.
Your Erfurt – fired with logs or with wood pellets. For pellet operation, a pellet system insert is placed in the combustion chamber. No electricity required.
- No power connection needed for pellet operation
- No electricity
- Pellets per filling (KO9)
- 2.1 kg
- Heat release (KO9)
- up to 2 h
- Nominal heat output with logs
- 5.9 kW
- Burning time with logs
- up to 1.5 h
- Heat release with logs
- up to 2 h
Values according to the technical data of the model.
Pellet firing made easy – without electricity
The video shows how a pellet system insert works in the combustion chamber.
Suitable for Erfurt:
Data and facts
Technical data
| measurements (cm) | H x W x D 135 x 30 x 30 cm |
| combustion chamber | H x W x D 52 x 25,5 x 25,5 cm |
| fire glass | H x W 54 x 34 cm |
| fire door | H x W 66 x 42 cm |
| total weight | 120 kg |
| chamotte bricks | 14 kg |
Data for firewood
| nominal heat output | 5,9 kW |
| efficiency | 78 % |
| heating capability | 70 - 210 m³ |
| amount of fuel | 1,9 kg / h |
| fire duration | up to1,5 h |
| heat release | up to 2 h |
| flue gas flow volume | 9,02 g/s |
| exhaust °C (nozzle) | 235 °C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | ≤ 1250 mg/m³ |
| dust (13%/O2) [mg/m³] | ≤ 40 mg/m³ |
| NOx (13%O2) | ≤ 200 mg/m³ |
| OGC (CxHy) (13%O2) | ≤ 120 mg/m³ |
Data for Pellet System Insert KO9
| nominal heat output | 7,2 kW |
| output range | 7,2 kW |
| efficiency | 91% |
| heating capability | 70 - 210 m³ |
| amount of fuel | 2,1 kg |
| fire duration | up to 1,5 h |
| heat release | up to 2 h |
| flue gas flow volume | 5,29 g/s |
| exhaust °C (nozzle) | 218° C |
| min/max feed press. | 12 / 15 Pa |
| CO (13%O2) | 540 mg/m³ |
| CO (13%O2) | 0,043 % |
| dust (13%/O2) [mg/m³] | 22 mg/m³ |
| NOx (13%O2) | 75 mg/m³ |
| OGC (CxHy) (13%O2) | 26 mg/m³ |
Distances to combustible walls / components
| wall distance, rear | 50 cm |
| wall distance, side | 50 cm |
| distance to the front | 80 cm |
- Flue pipe connection Ø 15 upwards ↑ or rear →
- Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
Compatible pellet system inserts
Accessories
- Stainless Steel Floor Protection
- Glas Floor Protection
- Swivel Base for Rotatable Version
- DIBt Testing for Room-Sealed Version
